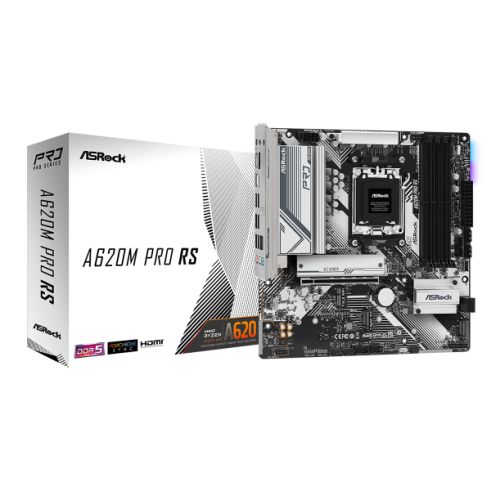

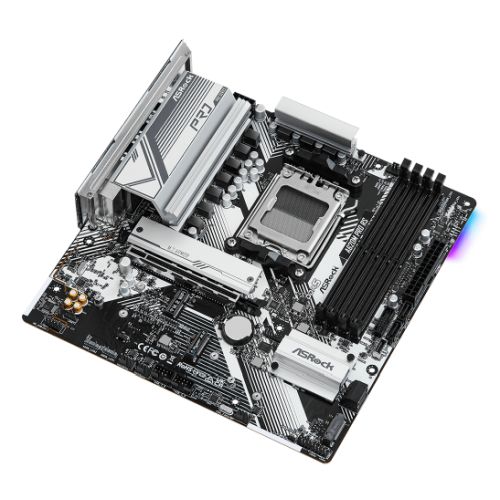

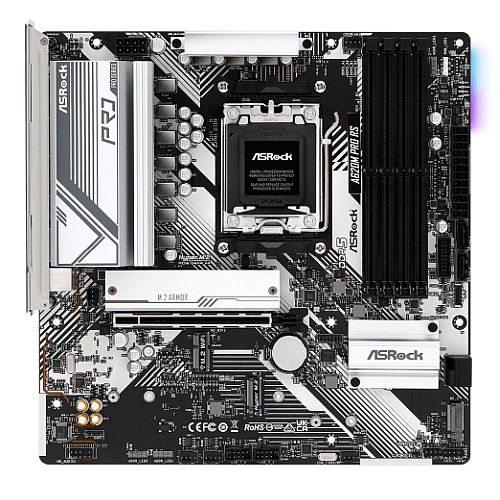

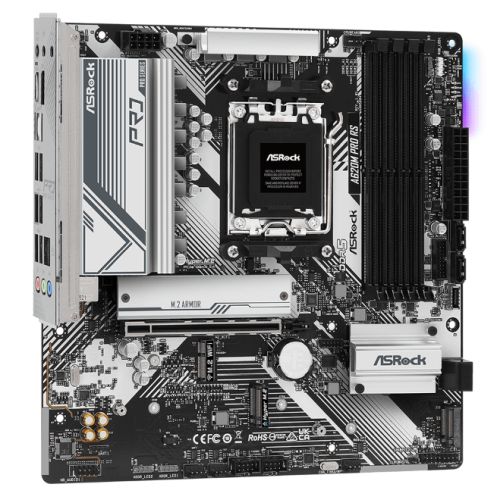

Asrock A620M PRO RS, AMD A620, AM5, Micro ATX, 4 DDR5, HDMI, DP, GB LAN, PCIe4, RGB, 3x M.2
Regular price
£91.89
inc. VAT
Couldn't load pickup availability
Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
- 6+2+1 Power Phase, Dr.MOS, 120W CPU Ready
- Supports DDR5 6000+ MHz (OC)
- 1 PCIe 4.0 x16, M.2 Key E for WiFi
- Graphics Output Options_ HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec,
- Nahimic Audio
- 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4),
- 1 M.2 (PCIe Gen3x2)
- 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),
- 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer,
- BIOS Flashback
Optimized VRM Design
Featuring sturdy components optimized for AMD Ryzen™ 7000X3D series processors, offering enhanced performance for gamers.
6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, giving a stable and reliable system.
Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include_
- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.
Nahimic Audio
- Audio That Matters - Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
- Enhance Communication Quality - The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
- Sound Tracker - The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
- Works on any devices - Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices_ Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
EZ Setting
- Auto Driver Installer - Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
- BIOS Flashback - Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
- Pre-Installed IO Shield - ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.
USB Ports Supported
4 x SATA III 1 x M.2 (2260/2280) - PCIe 1 x M.2 (2260/2280) - PCIe 1 x M.2 (2260/2280) - PCIe
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Wireless
-
LAN
GB LAN
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
1 x USB 3.2 Gen1 Type-C (at back) 5 x USB 3.2 Gen1 (3 at back, 2 at mid-board) 8 x USB 2.0 (4 at back, 4 at mid-board) 1 x Front USB 3.2 Gen1 Type-C connector
1 x PCIe 4.0 x16

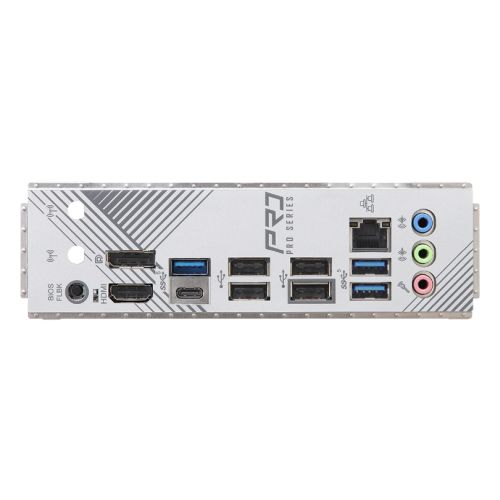

Back Panel I/O Ports
2 x Antenna Mounting Points 1 x HDMI 1 x DisplayPort 1.4 3 x USB 3.2 Gen1 Type-A 1 x USB 3.2 Gen1 Type-C 4 x USB 2.0 1 x RJ-45 LAN 1 x BIOS Flashback Button HD Audio Jacks
Internal I/O Connectors
1 x SPI TPM 1 x Power LED and Speaker 1 x RGB LED 3 x Addressable LED 1 x CPU Fan 1 x CPU/Water Pump Fan 3 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 8 pin 12V 1 x Front Panel Audio 2 x USB 2.0 1 x USB 3.2 Gen1
.
1 x Front Panel Type C USB 3.2 Gen1
Accessories
1 x User Manual 2 x SATA Data Cables 4 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket
Additional Features
Storage
PCI/PCI Express
Motherboard Type
Click here for CPU support
Form Factor
Micro ATX
Socket
AMD AM5
Chipset
AMD A620
#Hide#DDR Type
DDR5
CPU Support
RAM Technology
1 x HDMI 1 x DisplayPort
DDR5 (Dual Channel)
RAM Slots
4 x DIMM
RAM Speeds
Up to 6000+
Maximum Memory
128GB
Graphics
Integrated Graphics* *Graphics specifications may vary between CPU types
Graphics Ports
See Overview
