Kingston ValueRAM 16GB, DDR5, 5600MHz (PC5-44800), CL46, 1.1V, DIMM Memory

In stock
SKU: D516G56KVR46
Regular price £41.28 inc. VAT

Product details

  • Type Memory - Desktop
  • Vendor KINGSTON
  • SKU D516G56KVR46
  • Barcode 740617332827



Kingston 8GB DDR5 5600MT/s Non-ECC Unbuffered DIMM CL46 1Rx16 1.1V 288-pin 16Gbit

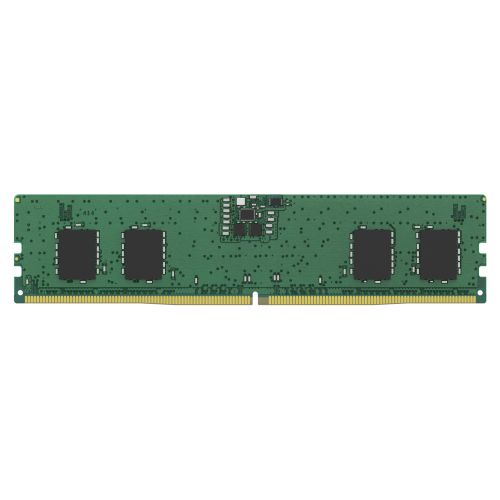

ValueRAM's KVR56U46BS8-16 is a 2G x 64-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.


  • Power Supply_ VDD = 1.1V Typical
  • VDDQ = 1.1V Typical
  • VPP = 1.8V Typical
  • VDDSPD = 1.8V to 2.0V
  • On-Die ECC
  • PCB: Height 1.23” (31.25mm)
  • RoHS Compliant and Halogen-Free




Warranty
No
LED Lighting
-
Additional Information
See Overview
Package Type
Retail
Package Weight
0.0270 kg
Lifetime
No









#Hide#LED Lighting
Heatsink
Series
5600 MHz
DDR Type
DDR5
Size
1 x 16GB
#Hide#Individual Module Size
16GB
#Hide#Total Capacity
16GB Total
Speed
Compliance
46-45-45
PC5-44800
Pins
288-pin
CAS Latency
CL46
Data Integrity Check
Non-ECC
Voltage
1.1V
Timings
