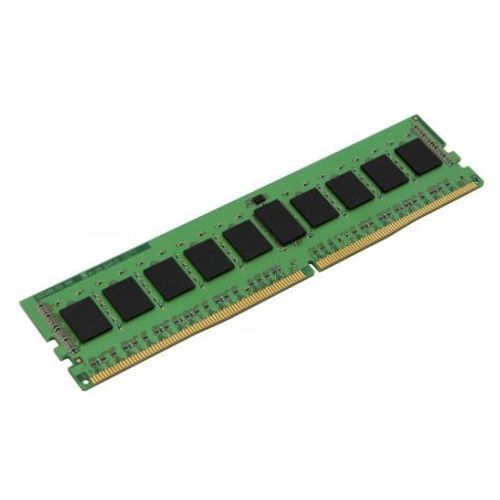

Kingston 16GB, DDR4, 2666MHz (PC4-21330), CL19, DIMM Memory

ValueRAM's KVR26N19D8/16 is a 2G x 64-bit (16GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.



Features

• Power Supply_ VDD=1.2V Typical
• VDDQ = 1.2V Typical
• VPP - 2.5V Typical
• VDDSPD=2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Dual-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB_ Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free

Warranty
No
#Hide#LED Lighting
No
Additional Information
See Overview
Package Type
Blister Pack
Package Weight
0.0225 kg
Lifetime
19-19-19









Heatspreader
Timings
Series
2666 MHz
DDR Type
DDR4
Size
1 x 16GB
#Hide#Individual Module Size
16GB
#Hide#Total Capacity
16GB Total
Speed
Compliance
1.2V Typical
PC4-21330
Pins
288-pin
CAS Latency
CL19
Data Integrity Check
Non-ECC
Low Voltage
No
Voltage
