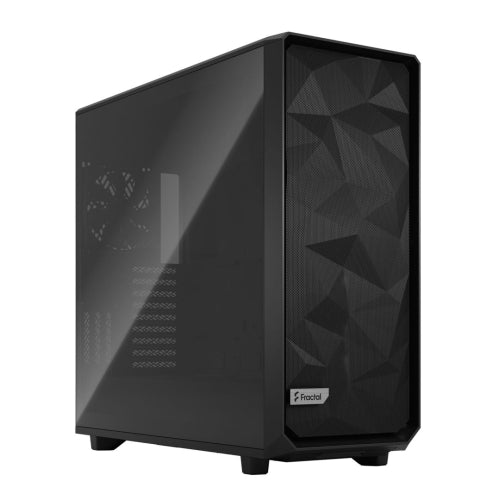

Fractal Design Meshify 2 XL (Black TG) Gaming Case w/ Light Tint Glass Window, E-ATX, Angular Mesh Front, 3 Fans, Fan Hub, Detach. Front Filter, USB-C
Fractal Design Meshify 2 XL (Black TG) Gaming Case w/ Light Tint Glass Window, E-ATX, Angular Mesh Front, 3 Fans, Fan Hub, Detach. Front Filter, USB-C
In stock
Regular price
£191.61
inc. VAT
Couldn't load pickup availability
Product details
- Type Cases
- Vendor FRACTAL
- SKU CAA-FRME2XLLTG
- Barcode 7340172702566
Share this product with others.
Bigger, bolder and better? With more of everything, the Meshify 2 XL is ready to take on your most ambitious builds.
- Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
- Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including E-ATX and SSI-EEB
- Support for radiators up to 480/420 mm in front, 480/420 mm up top, or 280/240 mm in the base in the default Open Layout
- Includes 6 HDD/SSD trays, 2 SSD brackets, and 2 universal Multibrackets for mounting up to 10 drives
- Expandable to 16 trays and 5 SSD brackets with 2 Multibrackets installed in the top for a max of up to 23 drives in Storage Layout
- New chassis design that opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
- New front nylon filter that can be removed for increased airflow
- New front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts
- Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
- Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
- Outstanding cooling capacity with a total of nine 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
- Easy-to-clean high airflow nylon filters on the top and base with full PSU coverage and convenient front access
- Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
- Versatile Multibrackets that convert any unused fan position to an HDD, SSD or pump mount
- Three vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
- Tool-less, top-latching panels allow quick access while preventing accidental drops
- Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
Detachable front filter
- The nylon filter is easily removed from the hinged mesh panel for increased airflow
- Tether-free bezel for easier access to front fan mounts
- Three pre-installed Dynamic X2 GP-14 fans and room for more (max 9x 140 mm / 11x 120 mm)
Superlative storage
- Optional accessories allow expansion up to 18 HDDs and 5 SSDs in Storage Layout
- The included Multibrackets lets you convert any unused fan positions to HDD, SSD or pump mounts
- Tool-less, top-latching panels allow quick access while preventing accidental drops
Flexible dual-layout design
- Convert to Open Layout and get more than enough room for your custom water loop with large reservoirs and radiators up to 480 mm
- Support for radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base)
- An expansive internal layout easily accommodates large motherboards up to E-ATX and SSI-EEB
14.1 kg (LxWxH) 600 x 240 x 566 mm w/o feet/protrusions/screws: 588 x 240 x 547 mm
Additional Features
See Overview / Video
Accessories
Accessory box User Manual Screw Box
Package Weight
15.6000 kg
Warranty
2 Years
GFX Card_ Storage layout_ 359 mm Open layout_ 549 mm (524 mm w/ front fan) Max CPU Cooler_ 185 mm PSU_ 250 mm (both HDD cages installed)
Weight/Dimensions
Compatability
Form Factor
1 x USB 3.1 Gen 2 Type-C 2 x USB 3.0 Audio I/O Power button Reset button
#Hide#Small Form Factor
No
Power Supply Wattage
No PSU
Motherboard Support
EE-ATX, E-ATX, ATX, Micro ATX, Mini ITX, SSI-CEB, SSI-EEB
#Hide#Window(s)
Yes (Window)
Connectors / Controls
Drive Bays
Left side panel_ Tempered glass dark tint Right side panel_ Steel
6 x 3.5"/2.5" - 18 positions total + 2 Multibrackets 2 x 2.5" - 5 positions total
Expansion Slots
9 + 3 Expansion slots
Cooling System
Included Front_ 2 x Dynamic X2 GP-14 140mm fans Rear_ 1 x Dynamic X2 GP-14 140mm fan Fan Mounts Front_ 4 x 120 / 3 x 140 mm Top_ 4 x 120 / 3 x 140 mm Rear_ 1 x 120 / 140 mm Bottom_ 2 x 120 / 140 mm
.
Water Cooling options_ Front_ Up to 480 / 420 mm radiator Top_ Up to 480 / 420 mm radiator Rear_ 120 mm radiator Bottom_ Up to 240 / 280 mm radiator
Colour
Black
Material
