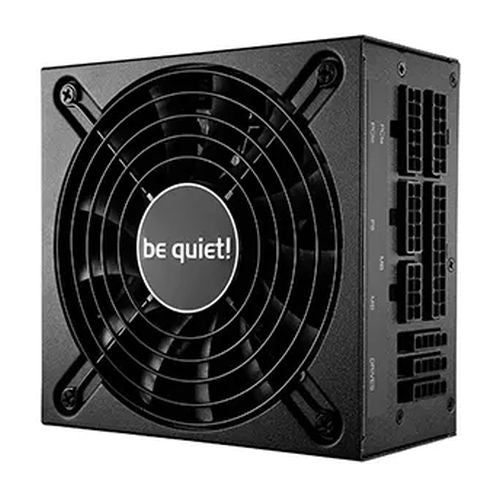

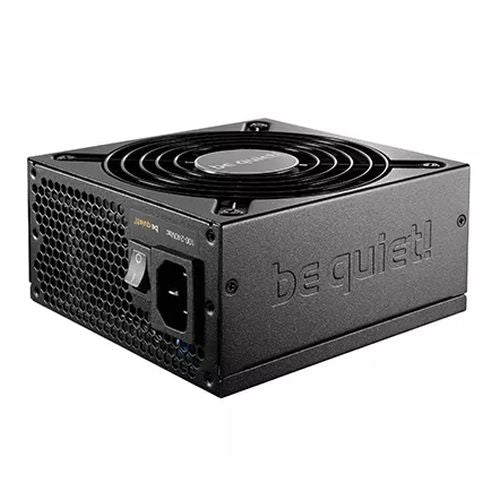

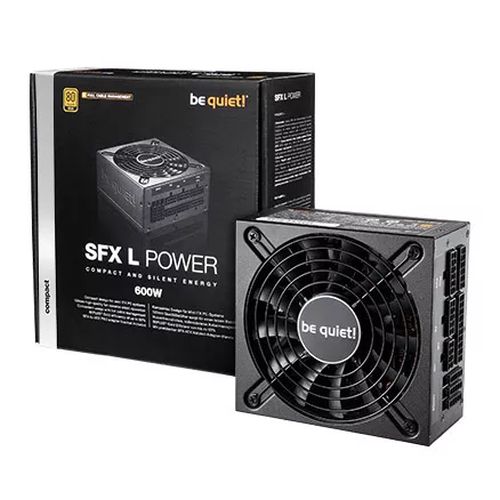

Be Quiet! 600W SFX-L Power PSU, Small Form Factor, Fully Modular, 80+ Gold, Continuous Power, SFX-to-ATX Bracket Included

Out of stock
SKU: PSU-600BQSFX-L
Regular price £96.00 inc. VAT

Product details

  • Type Power Supplies
  • Vendor BEQUIET
  • SKU PSU-600BQSFX-L
  • Barcode 4260052187135



Compact and Silent Energy


be quiet! SFX L Power 600W is especially recommended for mini ITX PCs and compact gaming systems. It performs well beyond the ordinary, with a great combination of quietness, features, reliability and efficiency.

  • 600 Watts of continuous power and powerful 12V-rail design offer high stability and performance
  • 80PLUS® Gold certification with up to 92% power conversion efficiency
  • Full cable management offers maximum build flexibility and convenient usage
  • Quiet operation thanks to temperature-controlled 120mm high-quality fan
  • SFX-to-ATX PSU adapter bracket makes possible usage with larger case sizes
  • Product conception, design and quality control in Germany




Applications

• Mini ITX systems
• Compact gaming PCs
• High-efficiency upgrade in any PC chassis requiring a SFX form factor PSU





Energy Efficiency

• 80PLUS® Gold certification means very high operating efficiency for its class of up to 92%
• High efficiency means cost savings, less wasted heat and an overall quieter operation
• Standby drain of less than 0.15 watts
• Meets Energy Star 6.0 guidelines
• Fulfills ErP guidelines
• Zero Load design and support of Intel’s Deep Power Down C6/C7 mode





Engineering

• Powerful 12V-rail design offers high stability and performance for CPU and GPU
• Four PCI express connectors for multi-GPU system configurations
• LLC, Synchronous Rectifier (SR) and DC-to-DC power conversion circuit design supports stability and efficiency
• High-quality Japanese capacitors for maximum reliability and operating life
• Temperature-controlled 120mm high-quality fan
• Optimized for low-noise operation thanks to the fan technology and low waste heat
• Full suite of top safety protections defends against over-currents, over- and under-voltages, short circuits, overheating and overloads





Highly Compatible and Convenient

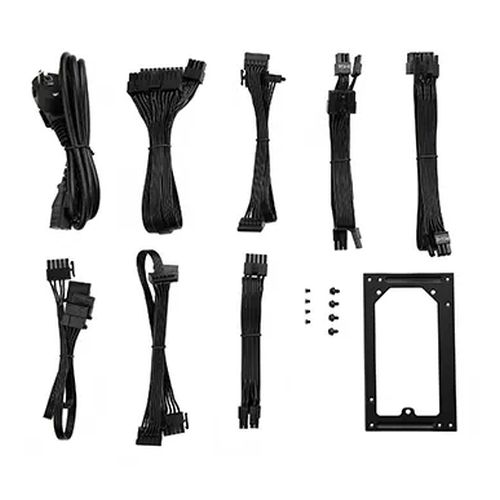

• Maximum build flexibility thanks to the full cable management
• SFX-to-ATX PSU adapter bracket makes it super-flexible for usage with larger case sizes
• Black flat cables of up to 80cm allow for improved cooling





Outstanding Service and Support

• 3- year warranty
• Quick support is available via our international hotline, Mondays to Fridays from 9_00 am to 5_30 pm German local time_ +49 (0) 40-736 76 86 - 98

Package Weight
up to 92%
MTBF
100,000 hours
Protection
Over current Over voltage Under voltage Short circuit Over temperature Over power
Additional Features
See Overview
Weight/Dimensions
1.16 kg 64 x 125 x 130 mm
2.0700 kg
80+ Gold
Warranty
2 Years







Efficiency
80+ Certification
Form Factor
1 x ATX-Mainboard (20+4 pin) 1 x P4+4 (CPU) 4 x PCI-E 6+2 pin (GPU) 3 x PATA 4 pin 6 x SATA 15-pin (HDD, Drives)
Series
Be Quiet! SFX L Power
Wattage
600 W
Modular
Fully Modular
Compatibility
SFX 12V Version 3.3 / ATX 2.4
Connectors
Rail Design
dB(A) at 20% load_ 8.5 dB(A) at 50% load_ 14.5 dB(A) at 100% load_ 28.7
Single +12V
AC Input
AC 100-240 V
PFC
Active PFC
Fan Type
Temperature-controlled 120mm high-quality fan
Fan Bearing
Sleeve Bearing
Noise
