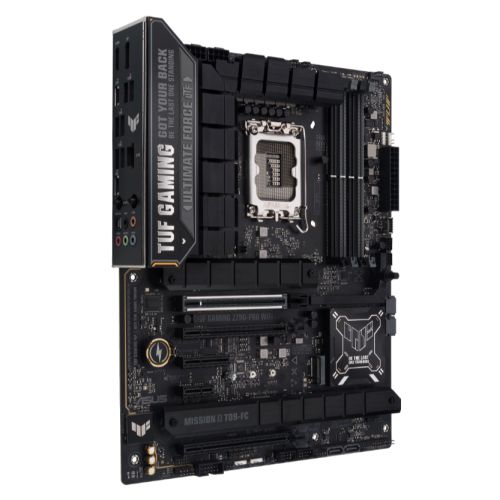

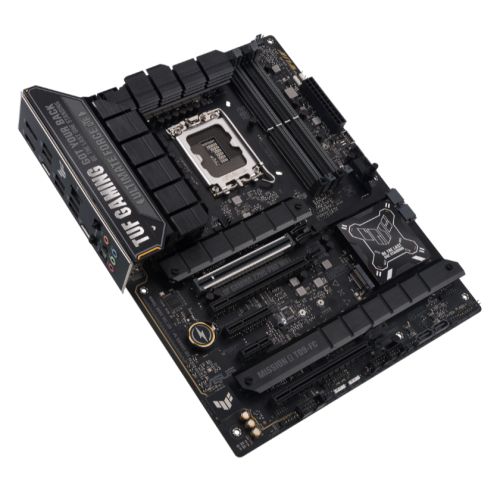

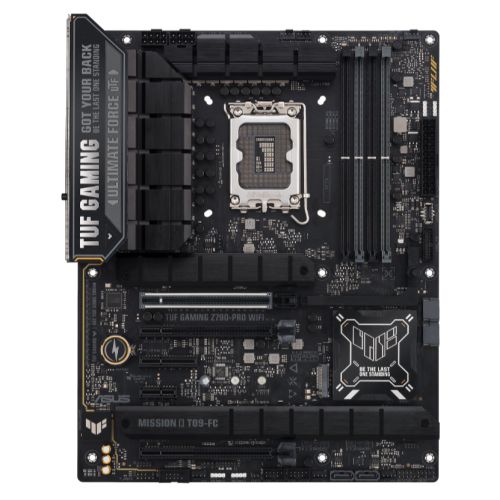

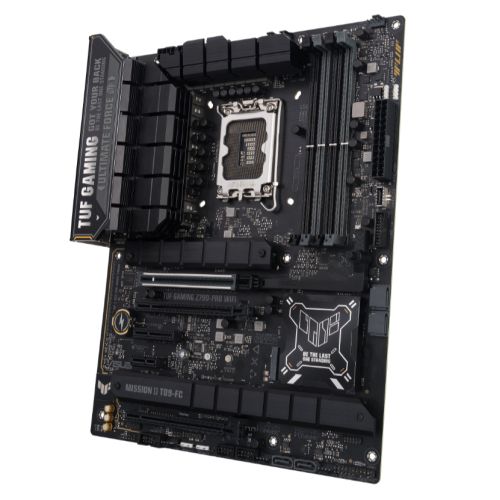

Asus TUF GAMING Z790-PRO WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2

Only 2 left
SKU: AUMBZ790PROTUFWI
Regular price £300.58 inc. VAT

Product details

  • Type Motherboards
  • Vendor ASUS
  • SKU AUMBZ790PROTUFWI
  • Barcode 4711387340844



TUF GAMING Z790-PRO WIFI combines the latest Intel® processors with game-ready features and military-grade durability.

With its premium power solution and comprehensive cooling system, this motherboard delivers rock-solid performance for marathon gaming. And it undergoes rigorous endurance testing to ensure reliability in challenging conditions. Meanwhile, a distinctive gray rubberized emblem adorns the VRM heatsink, celebrating the core essence of TUF GAMING vigor.



  • 16(60A)+1(60A)+1 power stages with enlarged VRM heatsinks
  • PCIe® 5.0 for graphics cards
  • Memory module support - 7800+ MT/s, AEMP II
  • Front USB 20Gbps (USB Type-C®) connector for PD 3.0 at 30W
  • PC DIY friendly
  • PCIe Q-Release
  • WiFi 6E with ASUS WiFi Q-Antenna
  • AI Overclocking
  • AI Cooling II
  • Two-Way AI Noise Cancelation





Intelligent Control

The TUF GAMING Z790 motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.





Rock-Solid Performance

With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storage, the TUF GAMING Z790-PRO WIFI is the perfect foundation for your next Intel battle rig.





Easy PC DIY

The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.





Immersive Gaming

TUF GAMING Z790 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.








                                             ** Click here for full product details **


USB Ports Supported
4 x SATA III 1 x M.2 (2242/2260/2280/22110) - PCIe 4.0 x4 1 x M.2 (2242/2260/2280) - PCIe 4.0 x4 1 x M.2 (2242/2260/2280/22110) - PCIe 4.0 x4 1 x M.2 (2242/2260/2280) - SATA & PCIe 4.0 x4
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Wireless
Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3
LAN
2.5GB LAN
Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (supports x4 mode) 1 x PCIe 4.0 x4 1 x PCIe 3.0 x16 (supports x1 mode) 1 x PCIe 3.0 x1

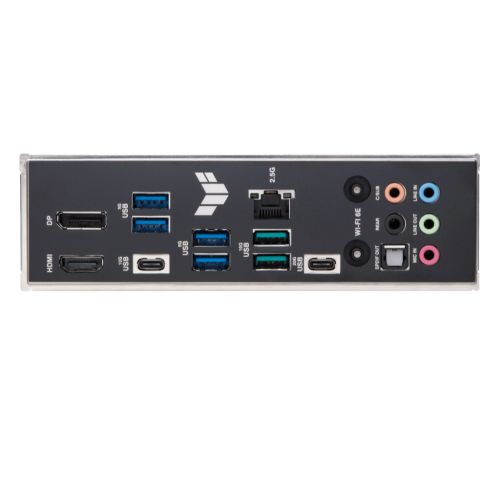

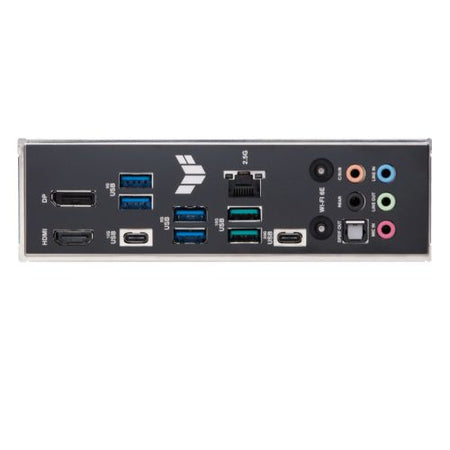

Back Panel I/O Ports
1 x USB 20Gbps Type-C 3 x USB 10Gbps (2 Type-A, 1 Type-C) 4 x USB 5Gbps Type-A 1 x DisplayPort 1 x HDMI 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet 5 x Audio jacks 1 x Optical S/PDIF out
Internal I/O Connectors
1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 1 x 4-pin AIO Pump 4 x 4-pin Chassis Fan 1 x 24-pin main 2 x 8-pin +12V 4 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 20Gbps Type-C 1 x USB 5Gbps 2 x USB 2.0 3 x Addressable Gen2
.
1 x Aura RGB 1 x Clear CMOS 1 x COM port 1 x Front panel audio 1 x 20-3 pin system panel 1 x Thunderbolt (USB4)
Accessories
2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x TUF GAMING sticker 2 x M.2 rubber packages 1 x Screw package for M.2 SSD 1 x TUF certification card 1 x Quick start guide
Additional Features
Storage
PCI/PCI Express
Motherboard Type
Intel LGA 1700 socket_ Ready for Intel Core Next-Gen 14th & 13th Gen Intel Core processors, Intel® Core 12th Gen, Pentium®Gold and Celeron Processors
Form Factor
ATX
Socket
Intel 1700
Chipset
Intel Z790
#Hide#DDR Type
DDR5
CPU Support
RAM Technology
1 x HDMI 1 x DisplayPort
DDR5, Dual Channel Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II)
RAM Slots
4 x DIMM
RAM Speeds
Up to 7800+(OC)
Maximum Memory
192GB
Graphics
Integrated Graphics* *Graphics specifications may vary between CPU types
Graphics Ports
See Overview
