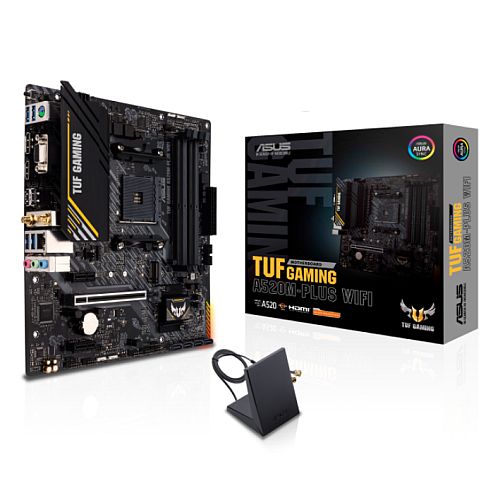

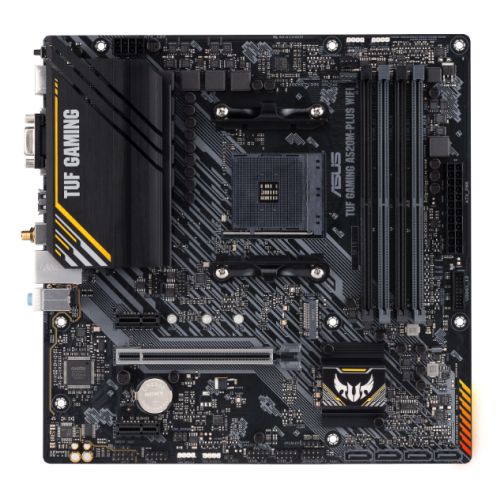

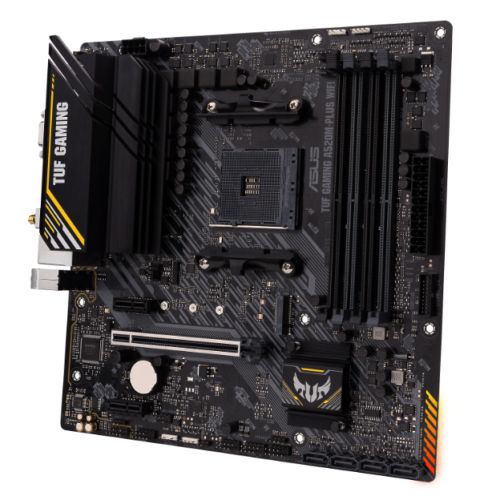

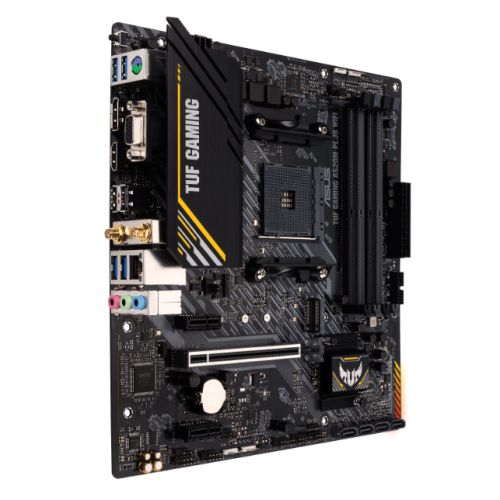

Asus TUF GAMING A520M-PLUS WIFI, AMD A520, AM4, Micro ATX, 4 DDR4, VGA, HDMI, DP, AC Wi-Fi, 1x M.2
Regular price
£101.31
inc. VAT
Couldn't load pickup availability
AMD A520 (Ryzen AM4) micro ATX gaming motherboard with M.2 support, 802.11ac Wi-Fi, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, and AURA Addressable Gen 2 headers
- AMD AM4 socket_ Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Comprehensive cooling_ Large VRM heatsink, PCH heatsink, Fan Xpert 2+
- Made for online gaming_ 802.11ac Wi-Fi, TUF LANGuard and TurboLAN technology
- Aura Sync RGB_ Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Durable. Stable. Reliable.
TUF Gaming A520M-Plus WIFI distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.
Rock-Solid Performance
With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, TUF Gaming A520M-Plus WIFI is the perfect foundation for your next high-core-count battle rig.
Easy PC DIY
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
Build with Confidence
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
Immersive Gaming
TUF Gaming A520M-Plus WIFI provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
** Click here for full product details **
USB Ports Supported
4 x SATA III 1 x M.2 (2242/2260/2280) - SATA & PCIe 3.0 x4
RAID
RAID 0, 1, 10
Wireless
802.11ac Wi-Fi 1x1 2.4/5GHz antennas for up to 433.3Mbps Bluetooth v5.0
LAN
GB LAN
Audio
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
Rear: 4 x USB 3.2 Gen1 Type-A 2 x USB 2.0 Front: 2 x USB 3.2 Gen1 3 x USB 2.0
1 x PCIe 3.0 x16 (supports x16 mode) 2 x PCIe 3.0 x1

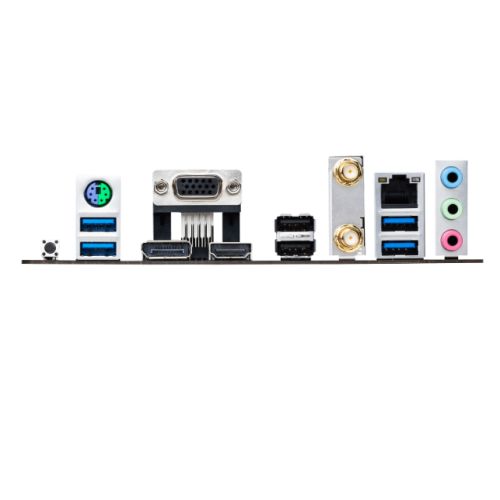

Back Panel I/O Ports
4 x USB 3.2 Gen1 Type-A 2 x USB 2.0 1 x DisplayPort 1 x HDMI 1 x D-Sub 1 x ASUS Ei-Fi Module 1 x Realtek 1Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack button 1 x PS/2 Keyboard/Mouse combo
Internal I/O Connectors
1 x 4-pin CPU Fan 2 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V 1 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 3.2 Gen1 2 x USB 2.0 2 x AURA Addressable Gen2 2 x AURA RGB 1 x Clear CMOS 1 x COM Port
.
1 x Front Panel Audio 1 x S/PDIF Out 1 x Speaker 1 x SPI TPM (14-1pin) 1 x 10-1 pin System Panel
Additional Features
See Overview
Package Type
Storage
PCI/PCI Express
Motherboard Type
Click here for CPU support
Form Factor
Micro ATX
Socket
AMD AM4
Chipset
AMD A520
#Hide#DDR Type
DDR4
CPU Support
RAM Technology
1 x VGA 1 x HDMI 1 x DisplayPort
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
RAM Speeds
Up to 4800(OC)
Maximum Memory
128GB
Graphics
Integrated Graphics Processor* Graphics specifications may vary between CPU types
Graphics Ports
Retail
