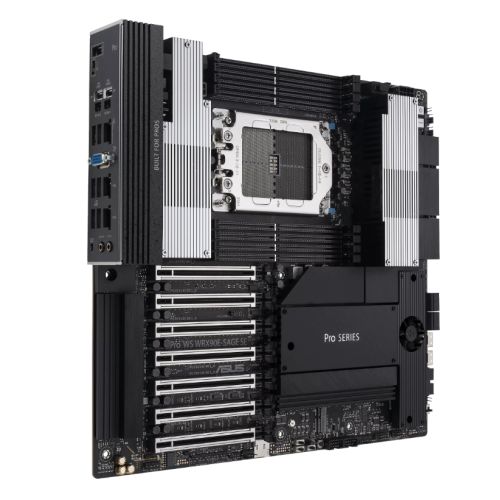

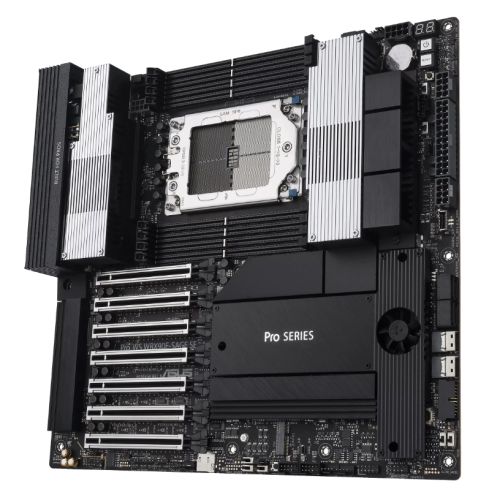

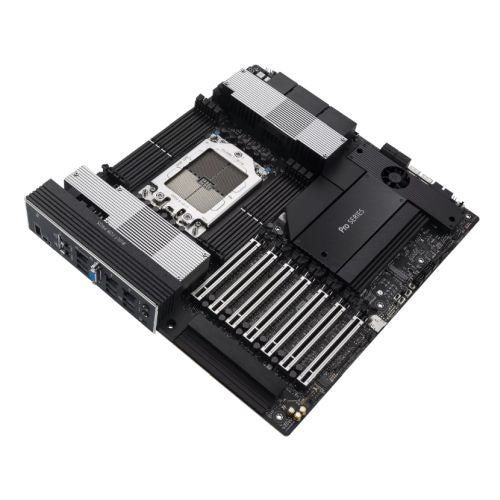

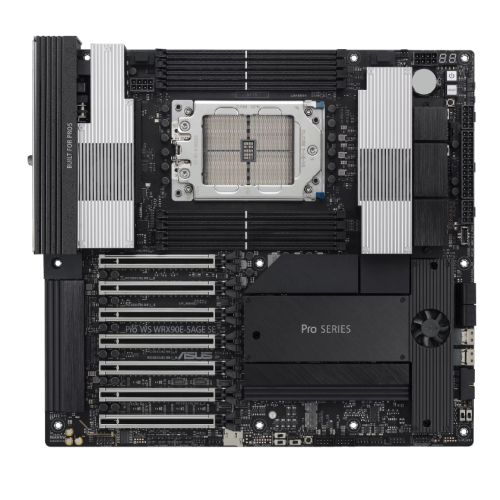

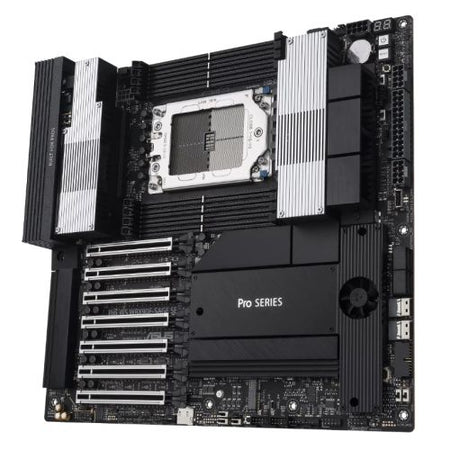

Asus PRO WS WRX90E-SAGE SE, Workstation, AMD WRX90, sTR5, EEB, 8 DDR5 ECC, Dual 10G LAN, SlimSAS, 7x PCIe5 x16, 4x M.2

Only 5 left
SKU: AUMBWRX90EWSPROSAGESE
Regular price £1,231.16 inc. VAT

Product details

  • Type Motherboards
  • Vendor ASUS
  • SKU AUMBWRX90EWSPROSAGESE
  • Barcode 4711387441145



AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim

  • AMD sTR5 socket supports up to 96-core CPUs_ Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.
  • Ultrafast connectivity_ Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support.
  • CPU and memory overclocking_ Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
  • Robust power and thermal design_ 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
  • PCIe Q-release Slim_ Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
  • Server-grade IPMI remote management and onboard BMC_ Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
  • Trusted stability_ Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.





                                             ** Click here for full product details **

Internal I/O Connectors
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10
LAN
Dual 10G LAN & Mgmt LAN Port
Audio
Realtek ALC1220P Surround Sound High Definition Audio CODEC
USB Ports Supported
Rear: 2 x USB4 40Gbps Type-C w/ ASMedia ASM4242 controller 6 x USB 10Gbps Type-A 1 x USB 2.0 Front: 1 x USB 20Gbps Type-C 2 x USB 5Gbps 4 x USB 2.0

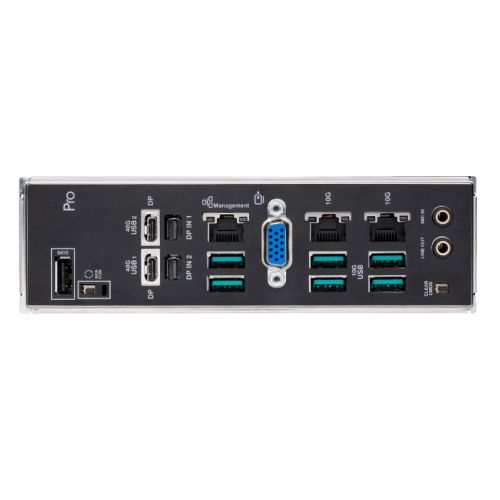

Back Panel I/O Ports
2 x USB4 40Gbps Type-C w/ ASMedia ASM4242 controller 6 x USB 10Gbps Type-A 1 x USB 2.0 1 x VGA 2 x mini DisplayPort IN 1 x Intel dual 10Gb Ethernet 1 x Realtek 1Gb Ethernet 2 x Audio jacks 1 x BIOS FlashBack button 1 x Clear CMOS button
1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 1 x W_PUMP+ 5 x 4-pin Chassis Fan 2 x 4-pin VRM Fan (VRM FAN onboard) 1 x 4-pin M.2 Fan (M.2 FAN onboard) 1 x 24-pin Main 2 x 8-pin +12V 2 x 8-pin PCIe to CPU 2 x 8-pin PCIe 4 x M.2 (Key M) 4 x SATA 6Gb/s
4 x SATA III 1 x M.2 (2242/2260/2280/22110) - PCIe 5.0 x4 1 x M.2 (2242/2260/2280/22110) - PCIe 5.0 x4 1 x M.2 (2242/2260/2280) - PCIe 5.0 x4 1 x M.2 (2242/2260/2280) - PCIe 5.0 x4 2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device
.
2 x SlimSAS 1 x USB 20Gbps Type-C 1 x USB 5Gbps 2 x USB 2.0 1 x Chassis intrusion 1 x COM port 1 x FlexKey button 1 x Front panel audio 1 x LN2 mode jumper 1 x M.2 (Key E)
.
7 x ProbeIt measurement points 1 x ReTry button 1 x RSVD switch 1 x Slow mode switch 1 x Safe boot button 1 x SPI TPM (14-1 pin) 1 x Start button 1 x 10-1 pin system panel 1 x Thermal sensor
Accessories
2 x PCIe 8-pin to CPU power cables 1 x 24-pin power cable (Y cable) 2 x Mini DisplayPort cables 4 x SATA 6Gb/s cables 1 x Thermistor cable pack 1 x Q-connector 1 x M.2 Q-Latch package 1 x AMI license sticker 4 x M.2 rubber packages 1 x Screw package for M.2 Key E 1 x ACC Express Activation Key Card
Additional Features
See Overview
Package Type
RAID
Storage
Motherboard Type
Click here for CPU support
Form Factor
CEB
Socket
AMD sTR5
Chipset
AMD WRX90
#Hide#DDR Type
DDR5
CPU Support
RAM Technology
6 x PCIe 5.0 x16 slots 1 x PCIe 5.0 x16 slot (x8 mode)
DDR5, ECC Registered Memory 8 Channel
RAM Slots
8 x DIMM
RAM Speeds
Varies depending on CPU and memory configuration
Maximum Memory
2048GB
Graphics Ports
1 x VGA port from AST2600 2 x USB 40Gbps (USB4) support USB Type-C display outputs
PCI/PCI Express
Retail
