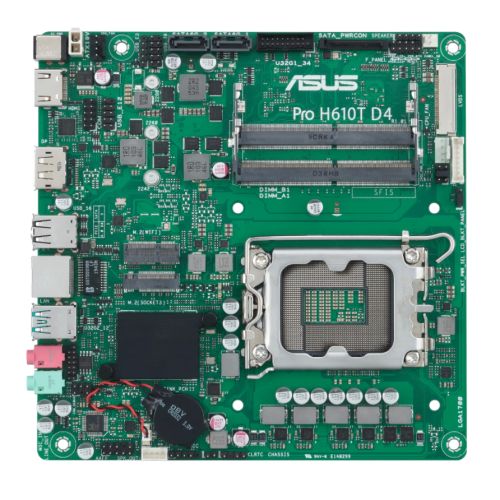

Asus PRO H610T D4-CSM - Corporate Stable Model, Intel H610, 1700, Thin Mini ITX, 2 DDR4 SO-DIMM, HDMI, DP, LVDS, 19v DC in, 1x M.2
Regular price
£114.71
inc. VAT
Couldn't load pickup availability
Thin mini-ITX H610 business motherboard with enhanced security, reliability, manageability and efficiency.
- Intel® LGA 1700 socket_ Ready for 12th Gen Intel® processors
- ASUS CSM program_ A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express_ Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security_ A self-recovering BIOS, and TPM to safeguard PCs
- Consistent and reliable performance_ High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability_ Q-LED diagnostic display and COM debug header to facilitate building and support processes
Pro
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
Asus Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Centre Express - server-grade IT management software.
Asus Control Centre Express
ASUS Control Centre Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization.
Asus Shield
Finest Components
- Asus Self-recovering BIOS_ BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.
- Trusted Platform Module(TPM): Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.
- Certified NIST SP 800-147: ASUS Business motherboard is certified by the national computer security standards.
- Asus Secure Boot_ Asus business motherboard is set to check the firmware and signature of each piece of boot software.
Asus Reliant
Ensures Performance with the finest Components and rigorous testing
- Anti-moisture Coating_ Protection against moisture and corrosion
- An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.
- Anti-sulphur Resistors_ Consider long-term reliability of commercial product, ASUS Business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS Business motherboard can be operated under the harsh environments.
- Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability
Finest Components
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
ESD Guards
Electrostatic discharge protection
ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/-15kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.
LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
Asus Commercial BIOS Kit
ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!
- BIOS Value Edit Tool Customize the BIOS options
- BIOS Boot Logo Tool Brand your builds with a customized boot logo
- OEM Activation (OA) Tools Add or remove the OEM Activation key
- Desktop Management Interface (DMI) Easily add customer information, such as company name, to the BIOS
- Intel Management Engine (Intel ME) Driver Update the Management Engine without flashing the whole BIOS
For more information please click here.
Internal I/O Connectors
-
LAN
GB LAN
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported
2 x USB 3.2 Gen2 Type-A (at back) 2 x USB 3.2 Gen1 Type-A (at mid-board) 7 x USB 2.0 (2 at back, 5 at mid-board)
Back Panel I/O Ports
2 x USB 3.2 Gen2 2 x USB 2.0 1 x DisplayPort 1 x HDMI 1 x Realtek 1Gb Ethernet 2 x Audio jacks 1 x DC Power (Support 19V)
1 x 4-pin CPU Fan 1 x 4-pin Chassis Fan 1 x 2-pin +19V 1 x SATA power 1 x M.2 (Key M) 2 x SATA 6Gb/s 1 x USB 3.2 Gen1 2 x USB 2.0 1 x USB 2.0 1 x 2-pin internal DC power 1 x Stereo speaker 1 x DMIC
2 x SATA III 1 x M.2 (2260/2280) - SATA & PCIe
.
1 x Backlight inverter voltage selection 1 x FPD brightness 1 x Panel voltage selection 1 x Panel off 1 x Clear CMOS 1 x Chassis Intrude 1 x COM Port 1 x COM debug 1 x Front Panel Audio 1 x LVDS
.
1 x M.2 slot (Key E) 1 x Speaker 1 x SPI TPM (14-1pin) 1 x 10-1 pin System Panel
Accessories
2 x SATA 6Gb/s cables 1 x SATA power cable 2 x I/O Shields 1 x Support DVD 1 x ACC Express Activation Key Card 1 x User guide
Additional Features
See Overview
Package Type
Wireless
Storage
Motherboard Type
Click here for CPU support
Form Factor
Thin Mini ITX
Socket
Intel 1700
Chipset
Intel H610
#Hide#DDR Type
DDR4 SO-DIMM
CPU Support
RAM Technology
1 x HDMI 1 x DisplayPort 1 x LVDS connector
DDR4 SO-DIMM (Dual Channel)
RAM Slots
2 x SODIMM
RAM Speeds
3200/2933/2800/2666/2400/2133 MHz
Maximum Memory
64GB
Graphics
Integrated Graphics* *Graphics specifications may vary between CPU types
Graphics Ports
Retail
