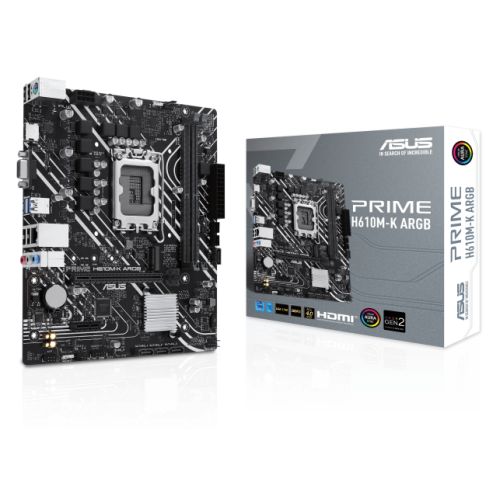

Asus PRIME H610M-K ARGB, Intel H610, 1700, Micro ATX, 2 DDR5, VGA, HDMI, PCIe4, 1x M.2

Out of stock
SKU: AUMBH610MKPRARGB
Regular price £102.17 inc. VAT

Product details

  • Type Motherboards
  • Vendor ASUS
  • SKU AUMBH610MKPRARGB
  • Barcode 4711387313350



Intel® H610 (LGA 1700) micro-ATX motherboard, DDR5, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI™, VGA, USB 3.2 Gen 1, SATA 6 Gbps, Addressable Gen 2 headers, Aura Sync


  • Intel® LGA 1700 Socket_ Ready for 13th and 12th Gen Intel® processors
  • Ultrafast Connectivity_ PCIe 4.0, 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
  • Comprehensive Cooling_ PCH heatsink and Fan Xpert 2+
  • Aura Sync RGB Lighting_ Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
  • Two-Way AI Noise Cancelation_ Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences





Flexibility

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.





Cooler by Design

Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.





Performance

Prime H610 series are built to handle the additional cores and increased bandwidth of 13th & 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.





Customisation

Prime H610 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.





Back Panel I/O Ports
4 x SATA III 1 x M.2 (2242/2260/2280) - PCIe 3.0 x4
Wireless
-
LAN
GB LAN
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported
Rear: 2 x USB 3.2 Gen1 Type-A 4 x USB 2.0 Front: 2 x USB 3.2 Gen1 1 x USB 2.0
2 x USB 3.2 Gen1 Type-A 4 x USB 2.0 1 x VGA 1 x HDMI 1 x Realtek 1Gb Ethernet 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo
1 x PCIe 4.0 x16 1 x PCIe 3.0 x1
Internal I/O Connectors
1 x 4-pin CPU Fan 2 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V 1 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 3.2 Gen1 1 x USB 2.0 2 x Addressable Gen2 1 x Clear CMOS 1 x Front Panel Audio 1 x COM Port
.
1 x S/PDIF Out 1 x Speaker 1 x SPI TPM (14-1pin) 1 x 10-1 pin System Panel
Accessories
2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 Anchor 1 x User guide
Additional Features
See Overview
Package Type
Storage
PCI/PCI Express
Motherboard Type
Click here for CPU support
Form Factor
Micro ATX
Socket
Intel 1700
Chipset
Intel H610
#Hide#DDR Type
DDR5
CPU Support
RAM Technology
1 x VGA 1 x HDMI
DDR5 (Dual Channel) Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP)
RAM Slots
2 x DIMM
RAM Speeds
Up to 5600 MHz
Maximum Memory
96GB
Graphics
Integrated Graphics Graphics specifications may vary between CPU types
Graphics Ports
Retail
