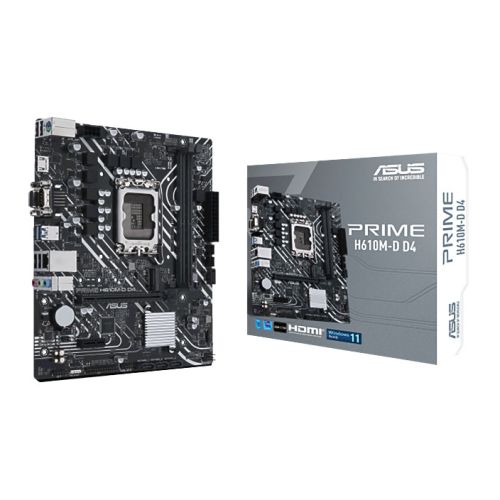

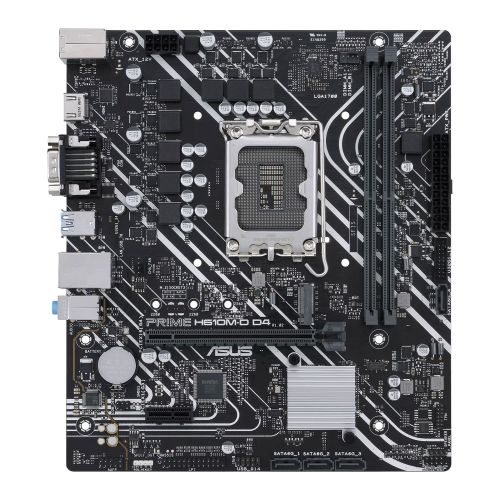

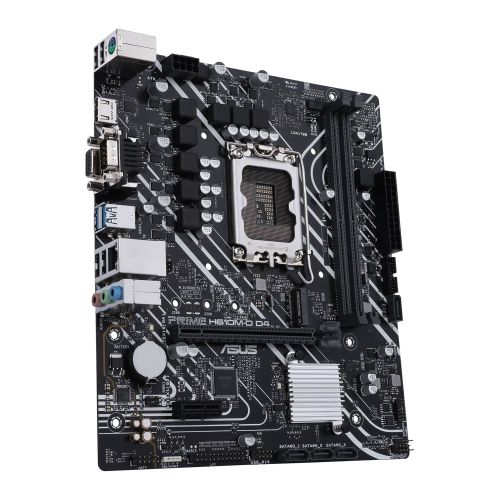

Asus PRIME H610M-D D4, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, PCIe4, 1x M.2

Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM port, LPT header, RGB header


• Intel® LGA 1700 socket_ Ready for 12th Gen Intel® processors
• Comprehensive cooling_ PCH heatsink and Fan Xpert
• Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
• 5X Protection III_ Multiple hardware safeguards for all-round protection

Flexibility



Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.



UEFI BIOS



The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.



Cooling



Prime H610 series are engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.



Performance



Prime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.



Customization

Prime H610 series add the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look.



For more information please click here.

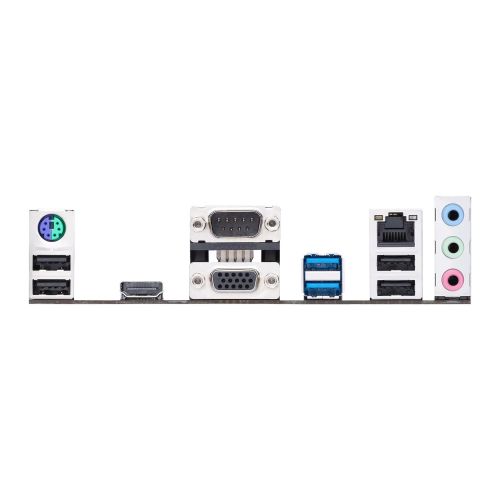

Back Panel I/O Ports
4 x SATA III 1 x M.2 (2242/2260/2280) - SATA & PCIe
Wireless
-
LAN
GB LAN
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported
4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board) 4 x USB 2.0 (2 at back, 2 at mid-board)
2 x USB 3.2 Gen1 Type-A 4 x USB 2.0 1 x D-Sub 1 x HDMI 1 x Realtek 1Gb Ethernet 3 x Audio jacks  1 x COM port 1 x PS/2 Keyboard/Mouse combo
1 x PCIe 4.0 x16 1 x PCIe 3.0 x1
Internal I/O Connectors
1 x 4-pin CPU Fan 1 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V 1 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 3.2 Gen1 1 x USB 2.0 1 x RGB 1 x Clear CMOS 1 x Front Panel Audio 1 x LPT
.
1 x S/PDIF Out 1 x Speaker 1 x SPI TPM (14-1pin) 1 x 10-1 pin System Panel
Accessories
2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 ANCHOR 1 x Support DVD 1 x User Guide
Additional Features
See Overview
Package Type
Storage
PCI/PCI Express
Motherboard Type
Click here for CPU support
Form Factor
Micro ATX
Socket
Intel 1700
Chipset
Intel H610
#Hide#DDR Type
DDR4
CPU Support
RAM Technology
1 x VGA 1 x HDMI
DDR4 (Dual Channel)
RAM Slots
2 x DIMM
RAM Speeds
3200/3000/2933/2800/2666/2400/2133 MHz
Maximum Memory
64GB
Graphics
Integrated Graphics* *Graphics specifications may vary between CPU types
Graphics Ports
Retail
