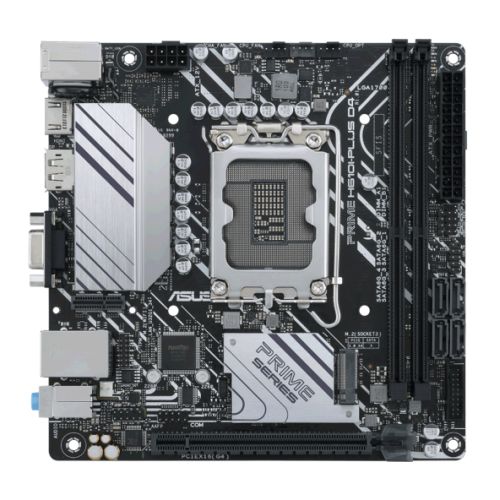

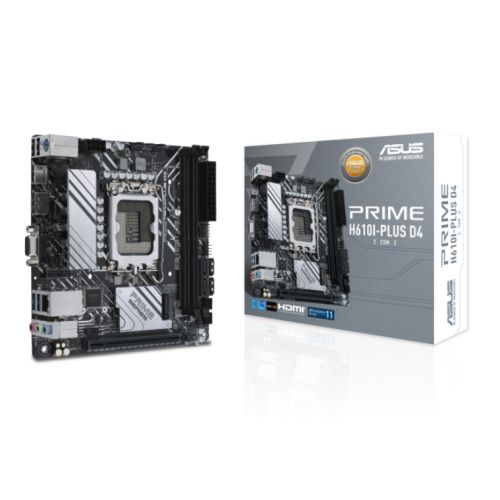

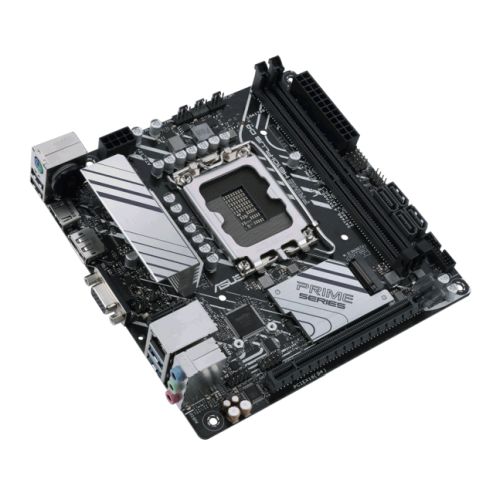

Asus PRIME H610I-PLUS D4-CSM - Corporate Stable Model, Intel H610, 1700, Mini ITX, 2 DDR4, VGA, HDMI, DP, 1x M.2
Asus PRIME H610I-PLUS D4-CSM - Corporate Stable Model, Intel H610, 1700, Mini ITX, 2 DDR4, VGA, HDMI, DP, 1x M.2
Out of stock
Regular price
£106.59
inc. VAT
Couldn't load pickup availability
Product details
- Type Motherboards
- Vendor ASUS
- SKU AUMBH610IPLCSMPRD4
- Barcode 4711081755753
Share this product with others.
Intel® H610 (LGA 1700) Mini-ITX motherboard with DDR4 3200, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, DisplayPort, HDMI®, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, Mono-out header with Amp IC
- Intel® LGA 1700 socket_ Ready for 12th Gen Intel® Core™ processors
- Enhanced power solution_ 5+1+1 DrMOS power stages, 8-layer PCB, for stable power delivery
- Comprehensive cooling_ VRM heatsink, PCH heatsink and Fan Xpert
- Ultrafast connectivity_ 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 ports.
- 5X Protection III: Multiple hardware safeguards for all-round protection.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.
ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
- Optimize IT endpoint management - Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely
- Automate IT maintenance - Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility
- Securely manage all of endpoints - Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
Intelligent Control
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Flexible cooling controls
Prime 600 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert software. Auto-Tuning mode intelligently configures all parameters with a single click.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
Cooling
Prime H610 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
VRM Heatsink and Thermal Pad
VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chokes for better cooling performance.
Cooler by Design
Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
M.2 slot (up to 32 Gbps)
Prime H610I-PLUS D4 offers one M.2 slot that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.
Connectivity
Connectivity
PCIe® 4.0
Prime H610 motherboards are designed specifically for 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
USB 3.2 Gen 1
Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A ports with fast USB 3.2 Gen 1 connectivity for compatible cases.
V-M.2 Slot Key E for Wi-Fi
PRIME H610I-PLUS D4 comes along with an vertical M.2 (Key E) slot and ASUS exclusive Wi-Fi card holder which provide you the flexibility to upgrade your networking solution by installing an M.2 Wi-Fi/Bluetooth module.
Armoury Crate
Armoury Crate is a ASUS-exclusive software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you easily customize fan curve for each connected fan via FAN Xpert utility. The software also provides control of settings for ASUS product, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlight to help you stay in touch with the ASUS community.
Fortified PCIe slot prevents damage
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.
Back Panel I/O Ports
1 x PCIe 4.0 x16
Storage
4 x SATA III 1 x M.2 (2260/2280) - SATA & PCIe
LAN
GB LAN
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported
4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board) 4 x USB 2.0 (2 at back, 2 at mid-board)

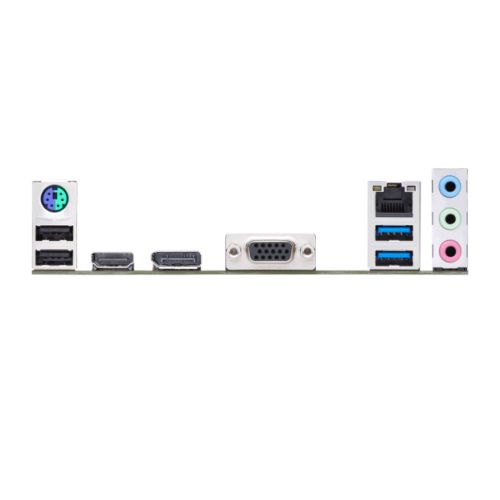

2 x USB 3.2 Gen1 (Type-A) 2 x USB 2.0 1 x DisplayPort 1 x D-Sub 1 x HDMI 1 x V-M.2 (Key E) 1 x Realtek 1Gb Ethernet 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo
-
Internal I/O Connectors
1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 1 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V 1 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 3.2 Gen1 1 x USB 2.0 1 x Clear CMOS 1 x COM Port 1 x Front Audio
.
1 x Mono-out (with Amp IC) 1 x SMBUS 1 x Speaker 1 x SPI TPM (14-1pin) 1 x 10-1 pin System Panel
Accessories
2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 Screw Package 1 x Vertical M.2 Key E bracket set 1 x Support DVD 1 x User guide
Additional Features
See Overview
Package Type
PCI/PCI Express
Multi-GPU Support
Motherboard Type
Click here for CPU support
Form Factor
Mini ITX
Socket
Intel 1700
Chipset
Intel H610
#Hide#DDR Type
DDR4
CPU Support
RAM Technology
1 x VGA 1 x HDMI 1 x DisplayPort
DDR4 (Dual Channel)
RAM Slots
2 x DIMM
RAM Speeds
3200/3000/2933/2800/2666/2400/2133 MHz
Maximum Memory
64GB
Graphics
Integrated Graphics* *Graphics specifications may vary between CPU types
Graphics Ports
Retail
