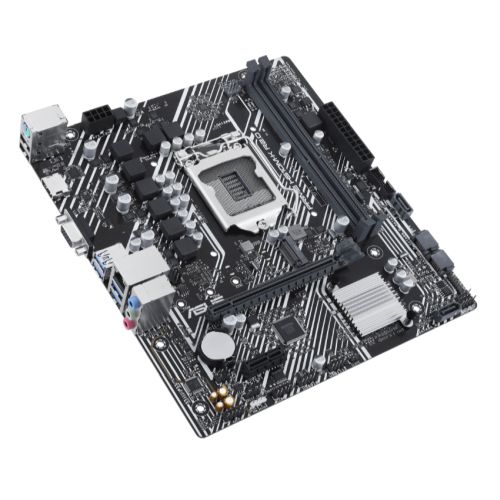

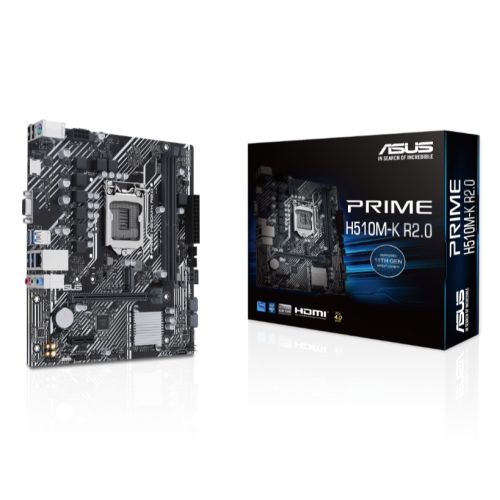

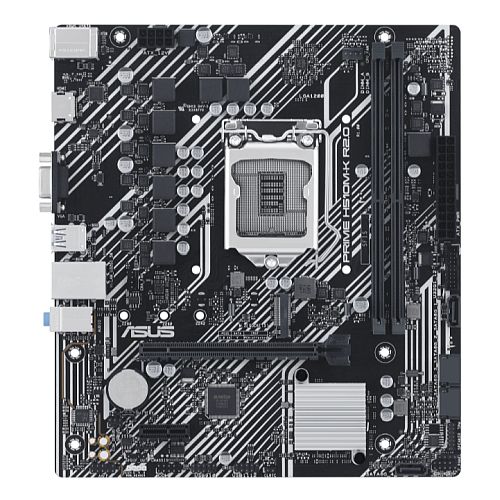

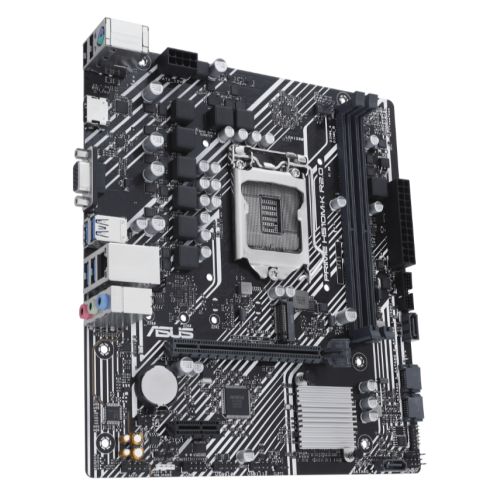

Asus PRIME H510M-K R2.0, Intel H470, 1200, Micro ATX, 2 DDR4, VGA, HDMI, 1x M.2

In stock
SKU: AUMBH510MKPRIMER2
Regular price £82.25 inc. VAT

Product details

  • Type Motherboards
  • Vendor ASUS
  • SKU AUMBH510MKPRIMER2
  • Barcode 4711387113189



Intel® H470 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Intel® Optane Memory Ready, FAN Xpert, Armoury Crate, 5X PROTECTION III


  • Intel® LGA 1200 socket_ Ready for 11th and 10th Gen Intel® Processors
  • Ultrafast connectivity_ PCIe 4.0, 32Gbps M.2 slot, 1 Gb Ethernet and USB 3.2 Gen 1
  • Comprehensive cooling_ PCH heatsink and Fan Xpert
  • 5X Protection III_ Multiple hardware safeguards for all-round protection




Prime

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 11th and 10th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H510M-K R2.0 provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.





Flexibility

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H510 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.





Cooling

Prime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.





Performance

Prime H510 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS H510 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.





Customisation

Prime H510 series adds the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look.
Outstanding Audio







                                             ** Click here for full product details **

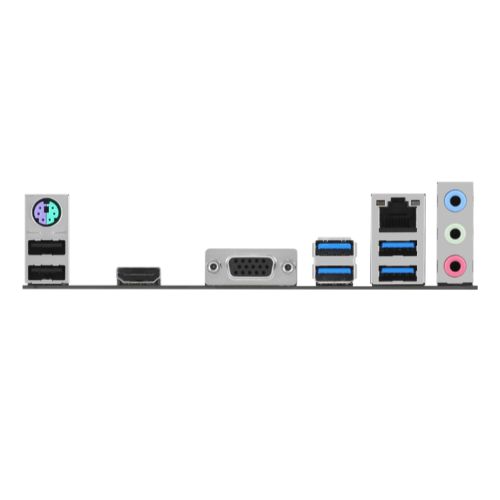

Back Panel I/O Ports
4 x SATA III 1 x M.2 (2242/2260/2280) - SATA & PCIe
Wireless
-
LAN
GB LAN
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported
6 x USB 3.2 Gen1 (4 at back, 2 at mid-board) 6 x USB 2.0 (2 at back, 4 at mid-board)
4 x USB 3.2 Gen1 Type-A 2 x USB 2.0 1 x VGA 1 x HDMI 1 x Realtek 1Gb Ethernet 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo
1 x PCIe 4.0/3.0 x16 1 x PCIe 3.0 x1
Internal I/O Connectors
1 x 4-pin CPU Fan 1 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V 1 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 3.2 Gen1 2 x USB 2.0 1 x RGB 1 x Clear CMOS 1 x COM Port 1 x Front Panel Audio
.
1 x S/PDIF Out 1 x Speaker 1 x SPI TPM (14-1pin) 1 x 10-1 pin System Panel
Accessories
2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 Anchor 1 x User guide
Additional Features
See Overview
Package Type
Storage
PCI/PCI Express
Motherboard Type
Click here for CPU support
Form Factor
Micro ATX
Socket
Intel 1200 - Comet Lake
Chipset
Intel H470
#Hide#DDR Type
DDR4
CPU Support
RAM Technology
1 x VGA 1 x HDMI
DDR4 (Dual Channel)
RAM Slots
2 x DIMM
RAM Speeds
Up to 3200(OC)
Maximum Memory
64GB
Graphics
Integrated Graphics* *Graphics specifications may vary between CPU types
Graphics Ports
Retail
