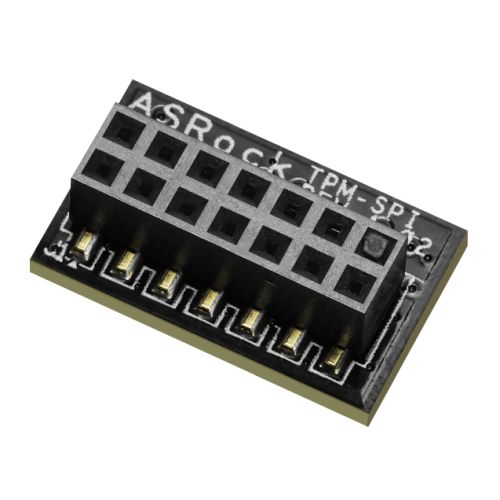

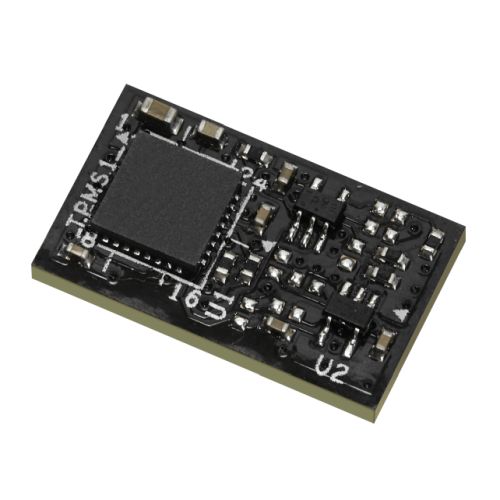

Asrock (TPM-SPI) TPM Module, 14-1 TPM Header, SPI Interface, Family 2.0, Level 00, Revision 01.16
Asrock (TPM-SPI) TPM Module, 14-1 TPM Header, SPI Interface, Family 2.0, Level 00, Revision 01.16
Only 8 left
Regular price
£12.67
inc. VAT
Couldn't load pickup availability
Product details
- Type TPM Modules
- Vendor ASROCK
- SKU ASMBTPM-SPI
- Barcode 4717677338768
Share this product with others.
Compliant to TPM Main Specification, Family "2.0", Level 00, Revision 01.16
- SPI interface
- Meeting Intel TXT, Microsoft Windows and Google Chromebook certification criteria for successful platform qualification
- Random Number Generator (RNG) according to NIST SP800-90A
- Full personalization with Endorsement Key (EK) and EK certificate
- Standard (-20..+85°C) and Enhanced temperature range (-40..+85°C)
- PG-VQFN-32-13 or PG-UQFN-32-1 package
- Pin compatible to OPTIGA™ TPM SLB 9670 TPM1.2 version
- Optimized for battery operated devices_ low standby power consumption (typ. 110µA)
- 24 PCRs (SHA-1 or SHA-256)
- 7206 Byte free NV memory
- Up to 3 loaded sessions (TPM_PT_HR_LOADED_MIN)
- Up to 64 active sessions (TPM_PT_ACTIVE_SESSIONS_MAX)
- Up to 3 loaded transient Objects (TPM_PT_HR_TRANSIENT_MIN)
- Up to 7 loaded persistent Objects (TPM_PT_HR_PERSISTENT_MIN)
- Up to 8 NV counters
- Up to 1 kByte for command parameters and response parameters
- 1280 Byte I/O buffer
*Supported on X570 and newer platform motherboards.
Designed for
3 Year Replacement Warranty
Function
The TPM is a secure cryptoprocessor, which is designed to secure hardware by integrating cryptographic keys
Interface
SPI interface
Pin Dimension
14-1pin
Package Weight
0.0200 kg
