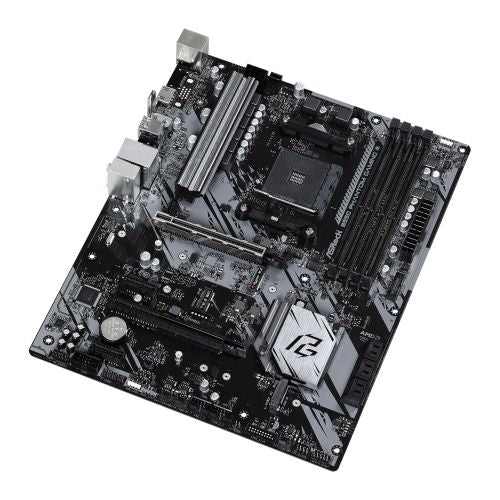

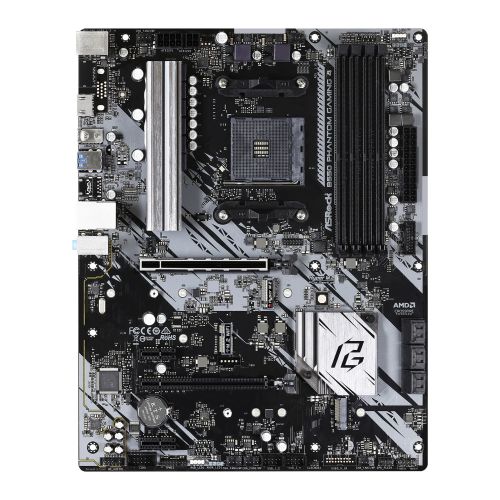

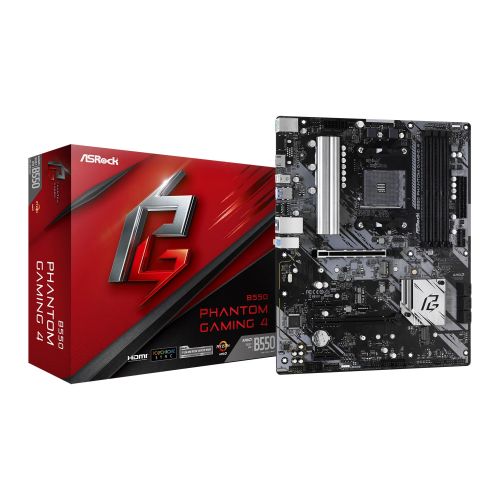

Asrock B550 PHANTOM GAMING 4, AMD B550, AM4, ATX, 4 DDR4, HDMI, XFire, PCIe4, M.2
Asrock B550 PHANTOM GAMING 4, AMD B550, AM4, ATX, 4 DDR4, HDMI, XFire, PCIe4, M.2
Out of stock
Regular price
£79.82
inc. VAT
Couldn't load pickup availability
Product details
- Type Motherboards
- Vendor ASROCK
- SKU ASMBB550PGAMING4
- Barcode 4710483931499
Share this product with others.
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
- Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
- 8 Power Phase Design, Digi Power
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options_ HDMI
- AMD CrossFireX™
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
- 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
- 8 USB 3.2 Gen1 (2 Front, 6 Rear)
- Gigabit LAN
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!
Polychrome RGB Sync-certified
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Dual M.2 For SSD, Supports Type 22110 M.2
Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.
Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include_
- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.
Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.
Sapphire Black PCB
High Density Glass Fabric PCB
2oz Copper PCB
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.
XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Audio
2 x PCIe 4.0 x16 2 x PCIe 3.0 x1
Storage
6 x SATA III 1 x M.2 (2260/2280/22110) - PCIe 1 x M.2 (2242/2260/2280) - SATA & PCIe
RAID
RAID 0, 1, 10
Wireless
-
LAN
GB LAN
7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
Supports AMD Quad CrossFireX and CrossFireX
USB Ports Supported
8 x USB 3.2 Gen1 (6 at back, 2 at mid-board) 4 x USB 2.0 (mid-board)

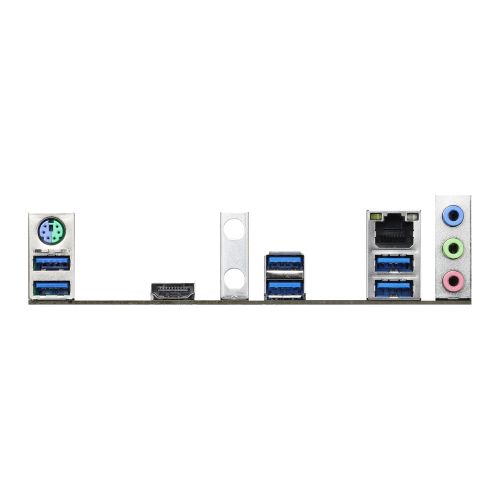

Back Panel I/O Ports
2 x Antenna 1 x PS/2 Mouse/Keyboard 1 x HDMI 6 x USB 3.2 Gen1 1 x RJ-45 LAN HD Audio Jacks
Internal I/O Connectors
1 x COM Port 1 x SPI TPM 1 x Power LED and Speaker 2 x RGB LED 2 x Addressable LED 1 x CPU Fan 1 x CPU/Water Pump Fan 4 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 8 pin 12V 1 x 4 pin 12V 1 x Front Audio
.
2 x USB 2.0 1 x USB 3.2 Gen1
Accessories
PCI/PCI Express
Multi-GPU Support
Motherboard Type
Click here for CPU support *Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
Form Factor
ATX
Socket
AMD AM4
Chipset
AMD B550
#Hide#DDR Type
DDR4
CPU Support
RAM Technology
1 x HDMI
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
RAM Speeds
4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Maximum Memory
128GB
Graphics
Integrated Graphics Processor* Graphics specifications may vary between CPU types
Graphics Ports
2 x SATA Data Cables 3 x Screw for M.2 Socket
