Arctic S8038-7K 8cm PWM Server Fans (4 Pack), Continuous Operation, Dual Ball Bearing, 500-7000 RPM

Out of stock
SKU: SF80-ARCS8038-7K-4PK
Regular price £27.26 inc. VAT

Product details

  • Type Case Fans
  • Vendor ARCTIC
  • SKU SF80-ARCS8038-7K-4PK
  • Barcode 4895213704304

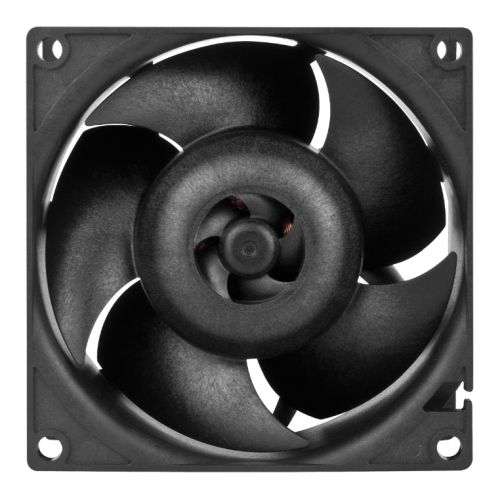

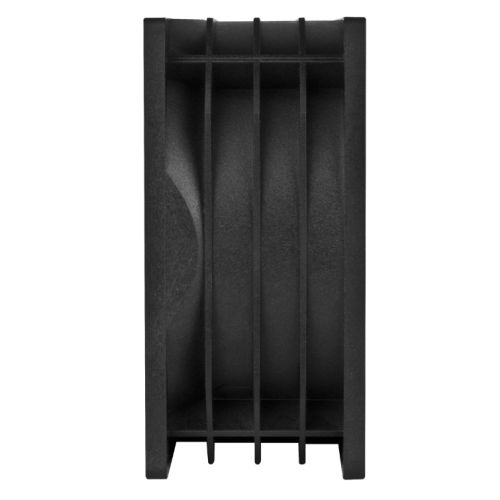

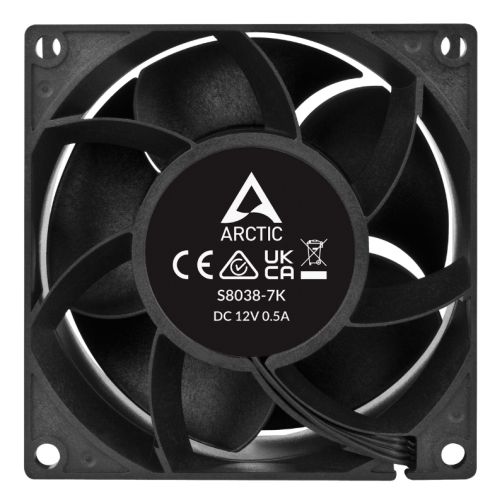

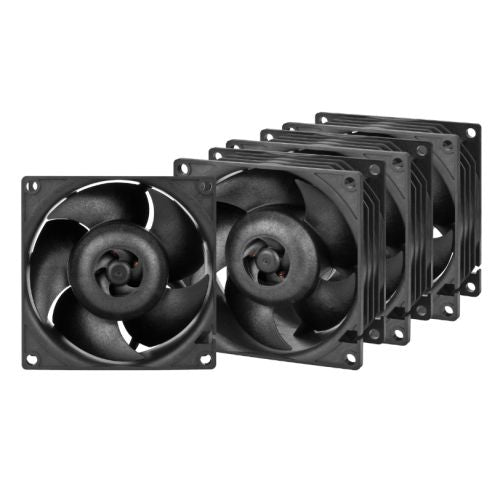

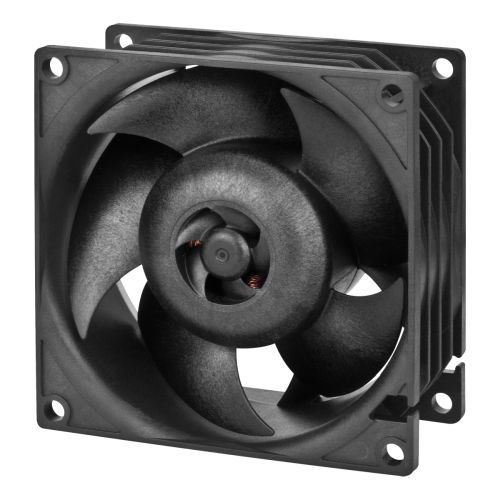

80mm 7K RPM Server Fan - 4 Pack

  • Speed: 500–7000 rpm, PWM controlled
  • Static: Pressure 25 mmH2O
  • Airflow: 70 cfm | 118.93 m³/h
  • Bearing: Dual Ball Bearing
  • Cable Length: 300 mm, Black
  • Connector: 4-Pin Connector
  • Current | Voltage: 0.5 A | 12.0 V DC
  • Start up Voltage: 3.6 V DC




New Standards in Energy Efficiency

For the same performance, the S8038 consumes 25 % less than the next best competitor, improving the energy efficiency of your server. The reduction of the power consumption is the result of months of motor optimization by ARCTIC engineers with the aim to increase the IT equipment efficiency.
* Test setup_ Fan on Freezer 4U heatsink placed on 300 W heater; fan speed set to maintain a constant heater temperature of 30°C above ambient.





Wide speed range (500 to 7000 rpm)

The S8038-7K offers a wide speed range that can be controlled both via PWM and voltage. This enables perfect optimisation of the fan to the specific requirements of the system. With a speed range from 500 rpm to 7000 rpm, it offers an ideal balance between cooling performance and noise development despite different requirements. The standard 4-pin connection additionally allows the S8038-7K to be connected to 2-pin or 3-pin headers and thus be controlled by voltage instead of PWM. The 30 cm long cable offers excellent flexibility when positioning the fan.





Active Cooling for Extended Motor Lifespan

A 10 °C lower motor temperature roughly doubles the service life. The motor of the S8038-7k is not only particularly efficient, but is also actively cooled by an additional impeller in the fan hub. This advance not only leads to improved operating efficiency, but also to considerable cost savings in the long term. The scope of delivery includes a sticker for the motor hub, which ensures a long service life even in particularly dusty environments.





Ideal for server environments

Especially in server environments, fans with a high pressure are required to enable sufficient air circulation in the often tightly packed enclosures. The S8038-7K fits into 2U server housings and serves as an upgrade or replacement for a CPU fan, radiator fan or for system ventilation. In addition to server cooling, it is also used in industrial systems and plays an important role in machine control and automation systems. Reliable and robust, it guarantees performance in various hardware environments and ensures efficient cooling and minimised downtimes.





High Airflow and Static Pressure

Heat sinks and radiators benefit from fans with high static pressure. The S8038-7K has a static pressure of 25 mm/H2O, which enables it to push air, even through narrow cooling fins. At the same time, it achieves a maximum airflow of 118,93 m³/h allowing it to quickly dissipate heat from enclosures. These properties make it the ideal choice for a wide range of applications.





Designed for Continuous Operation

The impeller of the S8038-7K is held in place by two Japanese ball bearings, making it not only particularly durable but also less sensitive to external influences such as heat and dust.





Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.




#Hide#Multipack
Current/Voltage:0.5 A/12.0 V DC Start up Voltage_ 3.6 V DC
Additional Features
See Overview
Package Contents
4 x S8038-7K 16 x Mounting Screws 4 x Impeller Sticker
Package Type
Retail
Warranty
6 Years
Yes (multipack)
Case Fans









Power
#Hide#Type 2
Size
Black
Fan Connector(s)
4-pin
Fan Controller
PWM
Installation
Screws
#Hide#LED Lighting
No
Colour
LED Lighting
70CFM / 118.9 m3/h
-
Weight
146 g
Fan Dimensions
80 x 80 x 38 mm
Rotation Speed
500 - 7000 RPM
Fan Bearing
Dual Ball Bearing
Air Flow
