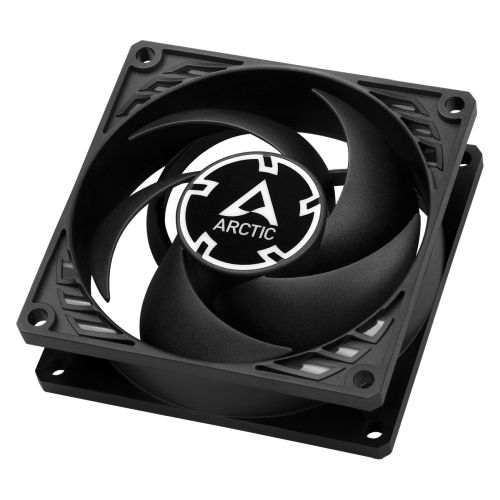

Arctic P8 8cm Pressure Optimised PWM PST Case Fan, Black, Fluid Dynamic, 200-3000 RPM

Out of stock
Regular price £4.13 inc. VAT

Product details

  • Type Case Fans
  • Vendor ARCTIC
  • Barcode 4895213702034

Pressure-optimised 80 mm Fan with PWM PST


Optimised For Static Pressure

During the development of the new P8 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST is particularly suitable for use on heatsinks and radiators.

More Efficient Technology

The motor is driven by a latest-generation PWM IC, which enables the new P8 PWM PST to operate much more efficiently than its predecessors. This saves energy without compromising performance.

Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Lifespan
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we give a manufacturer warranty of 6 years.

200 To 300 RPM Regulated VIA PWM PST
Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Two Way Instillation

Push warm air out of the case
Pull cool air into your case


Current/Voltage: 0.09 A/12 V Starting Voltage_ 3.4 V
Additional Features
See Overview
Package Type
Package Weight
0.1000 kg
6 Years

0.3 Sone

Noise level
Fan Connector(s)
#Hide#LED Lighting
LED Lighting
23.4 cfm | 40.3 m3/h
81 g
Fan Dimensions
80 x 80 x 25 mm
Fan Controller
Rotation Speed
200 - 3000 RPM
Fan Bearing
Fluid Dynamic Bearing
Air Flow
