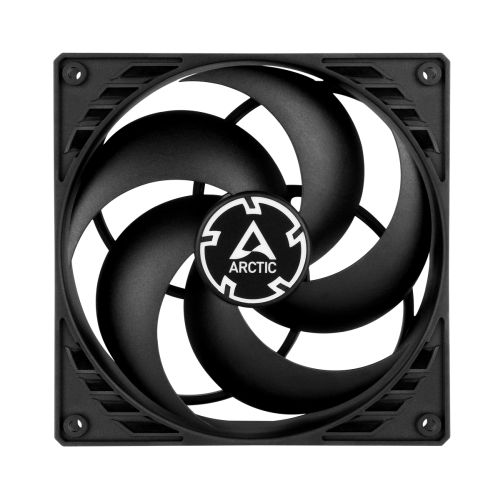

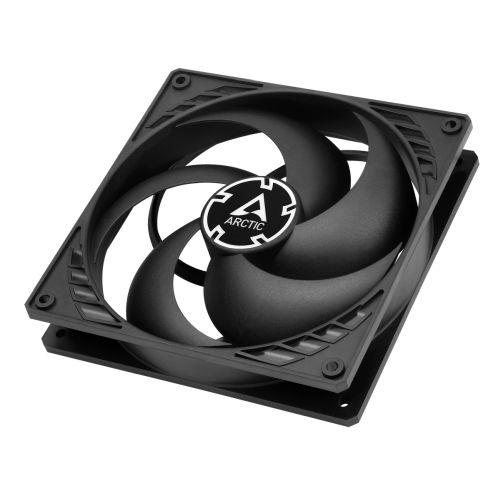

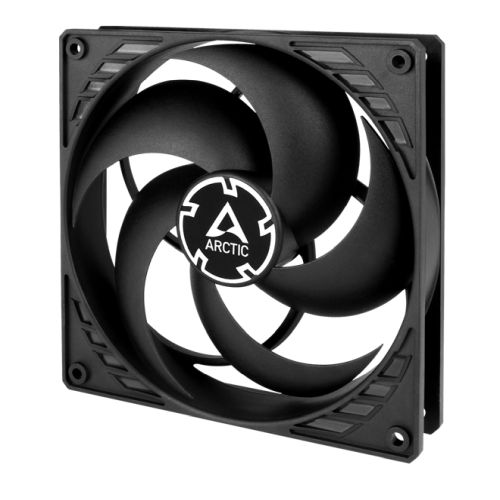

Pressure-optimised 140 mm Fan with PWM PST
Optimised For Static Pressure
During the development of the new P14 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST is particularly suitable for use on heatsinks and radiators.
More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P14 PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without compromising the performance.
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5% of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Extended Life Span
A 10°C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years.
200 To 1700 Rpm Regulated Via PWM PST
With a wide range of regulation and the PWM Sharing Technology (PST), the P14 PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Two Way Installation
- Push warm air out of the case
- Pull cool air into your case
12 V DC
Additional Features
See Overview
Package Type
Retail
Package Weight
0.2380 kg
Warranty
6 Years
0.3 Sone
Power
Noise level
Type
194 g
Fan Connector(s)
4-pin
Installation
Screws
#Hide#LED Lighting
No
Colour
Black
Weight
Fan Dimensions
72.8 CFM/ 123.76 m³/h
140 x 140 x 27 mm
Dimensions
Cable Length_ 400 mm
Fan Controller
PWM
Rotation Speed
200 - 1700 RPM
Fan Bearing
Fluid Dynamic
Air Flow
