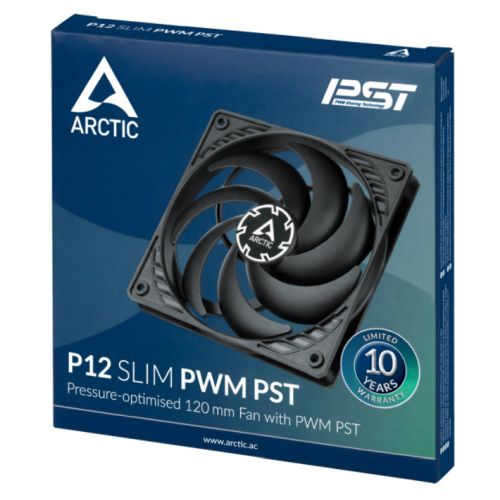

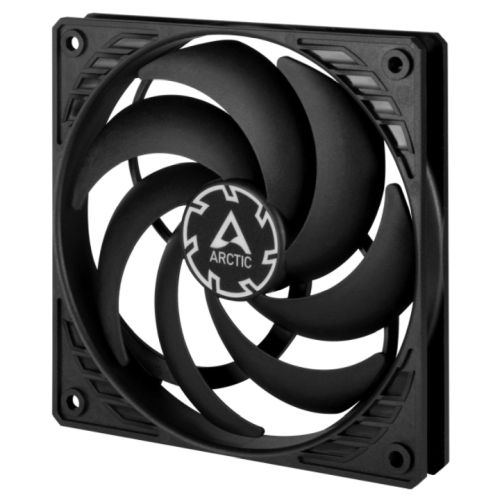

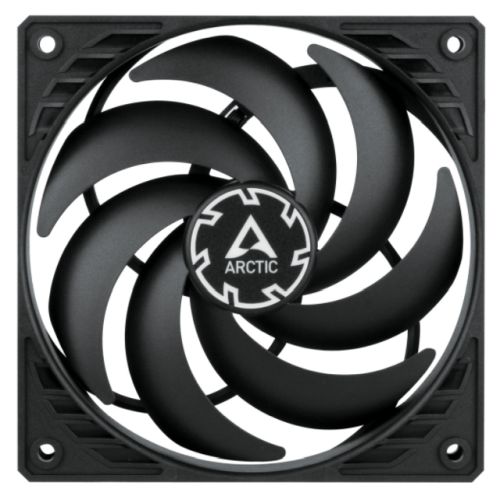

Arctic P12 Slim 12cm Pressure Optimised PWM PST Case Fan, Black, Fluid Dynamic, 300-2100 RPM

In stock
Regular price £5.85 inc. VAT

Product details

  • Type Case Fans
  • Vendor ARCTIC
  • Barcode 4895213703130


Pressure-optimised 120 mm PWM Fan with integrated Y-cable


Ideal Where Space Is Limited

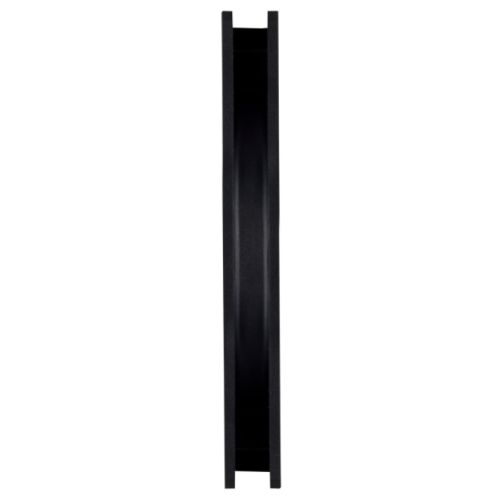

Unlike normal case fans, which are 25 mm thick, the P12 Slim PWM PST has an installation depth of only 15 mm. This makes it a predestined fan for small form factor builds.

Optimised For Static Pressure

During the development of the new P12 Slim PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 Slim PWM PST is particularly suitable for use on covered case vents or inlets with filters.

More Efficient Technology

The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 Slim PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.


Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Life Span

A 10°C lower motor temperature roughly doubles the life span of a fan.The new ARCTIC motor has a four times longer service life through its low coil temperature.Consequently, we have extended the warranty to 10 years.

300 To 2100 Rpm Regulated Via PWN PST

With a wide range of regulation and the PWM Sharing Technology (PST), the P12 Slim PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Two Way Installation

  • Push warm air out of the case
  • Pull cool air into your case

Typical Voltage_ 12 V DC Current_ 0.12 A
Additional Features
See Overview
Package Type
Package Weight
0.1200 kg
6 Years

0.3 Sone

Noise level
Fan Connector(s)
#Hide#LED Lighting
LED Lighting
42.1 CFM | 71.53 m3/h
Fan Dimensions
120 x 120 x 15 mm
Fan Controller
Rotation Speed
300 - 2100 RPM
Fan Bearing
Fluid Dynamic Bearing
Air Flow
