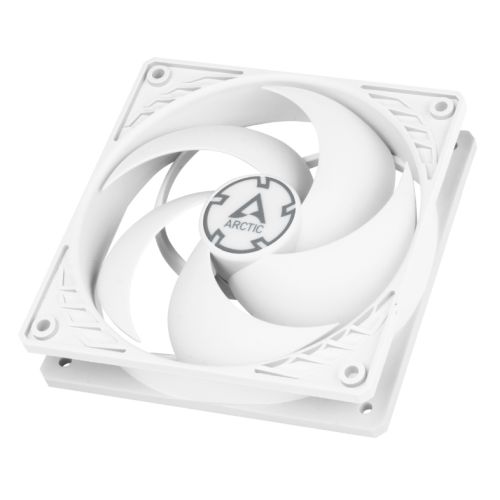

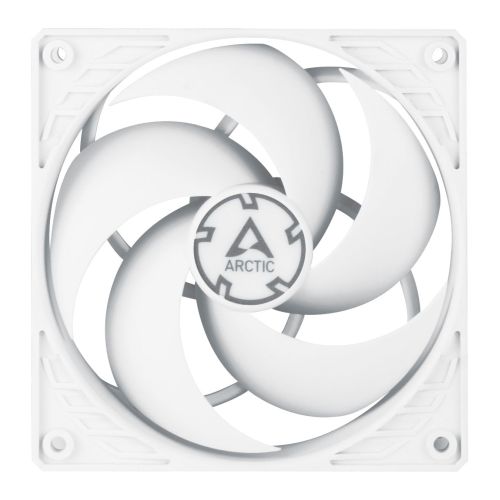

Arctic P12 12cm Pressure Optimised PWM PST Case Fan, Fluid Dynamic, 200-1800 RPM, White

In stock
SKU: CF120-ARCP12PWMPST-WH
Regular price £5.40 inc. VAT

Product details

  • Type Case Fans
  • Vendor ARCTIC
  • SKU CF120-ARCP12PWMPST-WH
  • Barcode 4895213702263



120 mm PWM Fan with Cable Splitter



Optimised for Static Pressure
During the development of the new P12 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST is particularly suitable for use on heatsinks and radiators.



0 dB Mode - Zero rpm
The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.




Strong Cooling Performance
Numerous improvements, such as updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB(A), the new P-fans left many competitors behind.




More Efficient Technology
The motor is powered by a PWM IC of the newest generation, which allows the new P12 PWM PST to run much more efficiently than its predecessors. This saves energy without compromising the performance.




Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.




Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we give a manufacturer warranty of 6 years.




200 to 1800 rpm Regulated via PWM PST
Thanks to the 4-Pin Connector, the rpm can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.




High-Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.




Two Way Installation
 - Push warm air out of the case
 - Pull cool air into your case





0.3 Sone (@ 1800 RPM)
Power
Current/Voltage: 0.1 A/12 V Starting Voltage_ 3.9 V
Additional Features
See Overview
Package Type
Retail
Package Weight
0.1750 kg

Case Fans









Noise level
#Hide#Type 2
Type
-
Fan Connector(s)
4-pin
Installation
Screws
#Hide#LED Lighting
No
Colour
White
LED Lighting
Weight
56.3 CFM / 95.7 m3/h
145 g
Fan Dimensions
120 x 120 x 25 mm
Fan Controller
PWM
Rotation Speed
200 - 1800 RPM
Fan Bearing
Fluid Dynamic Bearing
Air Flow
